Part Number: SDHL-200 / Vendor ID Number: 1177751 / Custom:
Coxreels SDHL-200

Coxreels SDHL-200
by Coxreels

230
19
Pack Of: 1
Contact for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

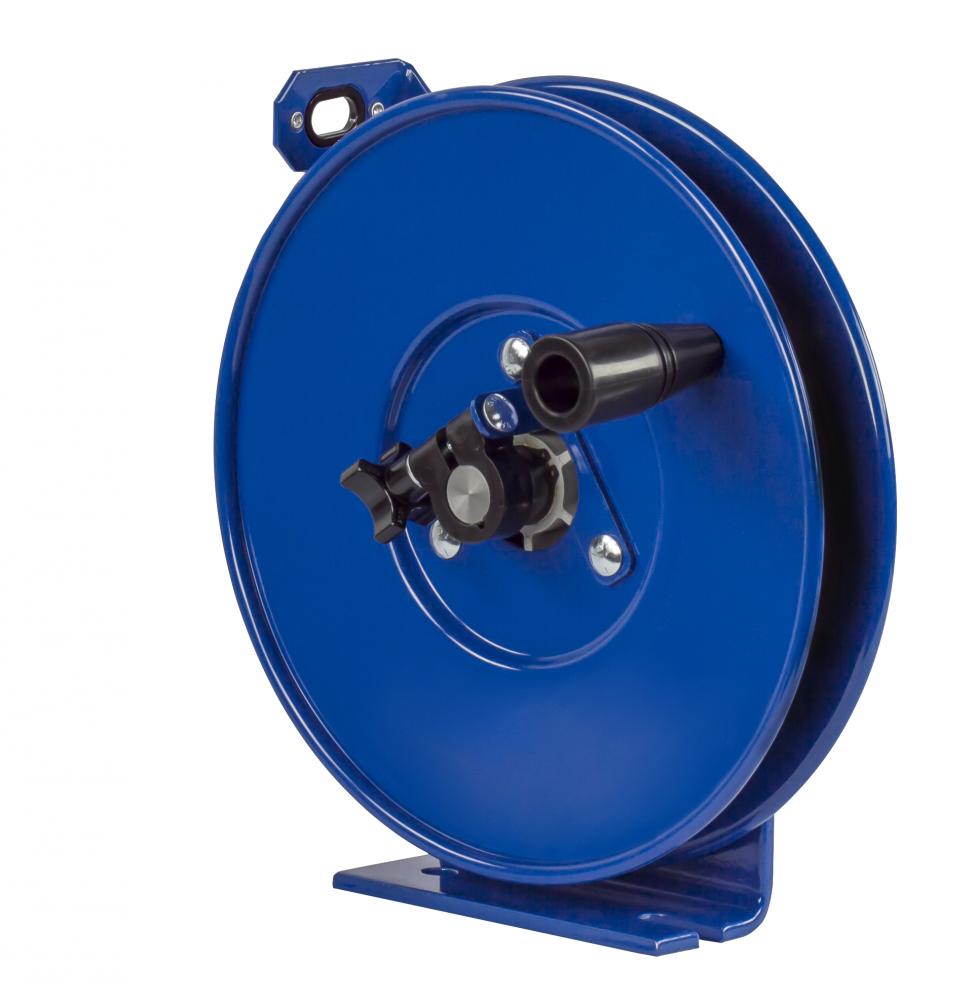

Coxreels SDHL-200 Static Discharge Hand Crank Cable Reel: 200' cable, less cable
Coxreels SDHL-200 Static Discharge Hand Crank Cable Reel 200ft no cable
Product Availability
Specific Products:
Additional Information
1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
COXREELS® SD and SDH Series “Static Discharge” cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent
MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,and sturdy permanently lubricated precision bearings.
RETRACTION - Compact static discharge cable reel with direct hand crank retraction.
STEEL CABLE - 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
Info & Guides
Operating Manual
Part Drawings
Spec Sheet
Marketing Collateral 1
Technical Details
Details
(Z) Less Swivel (Add Suffix to the reel):
-BZX
ALL:
Coxreels SDHL-200 Static Discharge Hand Crank Cable Reel: 200' cable, less cable ~ Compact static discharge cable reel available in spring rewind or direct hand crank retraction ~ Commonly paired with fuel reels & used in combustible environment for g
Aviation:
x
Bearings:
1" Permanently Lubricated Precision Bearings
Bottom-Truck Mount (Add Suffix to the reel):
-B
Cancer:
Nickel
Cancer Cas #:
7440-02-0
Constant Tension (Add Suffix to the reel):
-BXC
Construction:
Steel
Country of Origin (COO):
US
Dd (inch):
5
Design & Structure:
~ Compact static discharge cable reel available in spring rewind or direct hand crank retraction ~ Commonly paired with fuel reels & used in combustible environment for grounding purposes ~ Guide arm adjusts to wall, floor, vehicle & overhead positions ~ S
Disk (inch):
-
Down Mount (Add Suffix to the reel):
-D
Drive Type (Retraction Method) - Category:
Hand Crank
Dw (inch):
1.19
EAN Code:
0674255923782
Export Control Classification Number:
EAR99
Finish:
Powder Coated
Floor Mount (Add Suffix to the reel):
-F
Freight Class:
85
Gloss Black (Add Suffix to the reel) Minimum order:
-KXX
Gloss White (Add Suffix to the reel) Minimum order:
-WXX
Gray (Add Suffix to the reel) Minimum order quanti:
-GXX
Green (Add Suffix to the reel) Minimum order quant:
-NXX
H (inch):
11.5
H (inch).1:
16
HazMat (YES/NO):
NO
Hose | Cord | Cable Included (Y/N):
N
Is Item EPA Certified:
NO
Is Item NAFTA Certified:
NO
Keywords - English:
Static Discharge Cable Reel - Cable Reel - Hand Crank Cable Reel - Grounding Reel - Cable Reel
L (inch):
11
L (inch).1:
14.5
Label Text:
WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm.
Language - Packaging Labeling:
English
Length.2:
200'
M (inch):
4
Military & Governement:
x
Mining:
x
Mount Hole:
0.5
Mounting:
Floor, Wall, Ceiling, Bench and Vehicles
N (inch):
-
NMFC #:
169140S2
ORMD (Other Regulated Material Domestic) (YES/NO):
NO
Product Classification / Tariff Number:
8479.89.98.99
Prop 65 Warning (YES/NO):
YES
Red (Add Suffix to the reel) Minimum order quantin:
-RXX
Reel Design:
Single Pedestal
Reproductive:
Chromium
Reproductive Cas #:
7440-47-3
Restricted for Export by vendor:
NO
Retraction:
` Simple design with direct hand crank action
Series:
SDH Series
Series Introductory Text:
COXREELS® SD and SDH Series “Static Discharge” cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent
Ship Weight (lbs):
10
Signature Features:
~ Professional grade heavy duty steel construction ~ Durable proprietary CPC™ powder coat process ~ Rolled edges & ribbed discs provide strength & safety ~ Leading 2-year manufacturer's limited warranty ~ Made in the U.S.A. - Sold & Supported Worldwi
State Restrictions (YES/NO):
NO
Static Discharge - Grounding:
x
Sub-Category:
Cable
W (inch):
5.75
W (inch).1:
6.75
W x H x L:
5.75Wx11.5Hx11L
W x H x L.1:
6.75Wx16Hx14.5L
Wall Mount (Add Suffix to the reel):
-W
Warranty Length:
24 months Limited Parts / No Labor
Wrinkle Black (Add Suffix to the reel) Minimum ord:
-CXX
X (inch):
2.5
Y (inch):
6
Manufactured By:
Coxreels
