Part Number: V-1175-850 / Vendor ID Number: 1177751 / Custom:
Coxreels V-1175-850

Coxreels V-1175-850
by Coxreels

760
23
Pack Of: 1
Contact for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

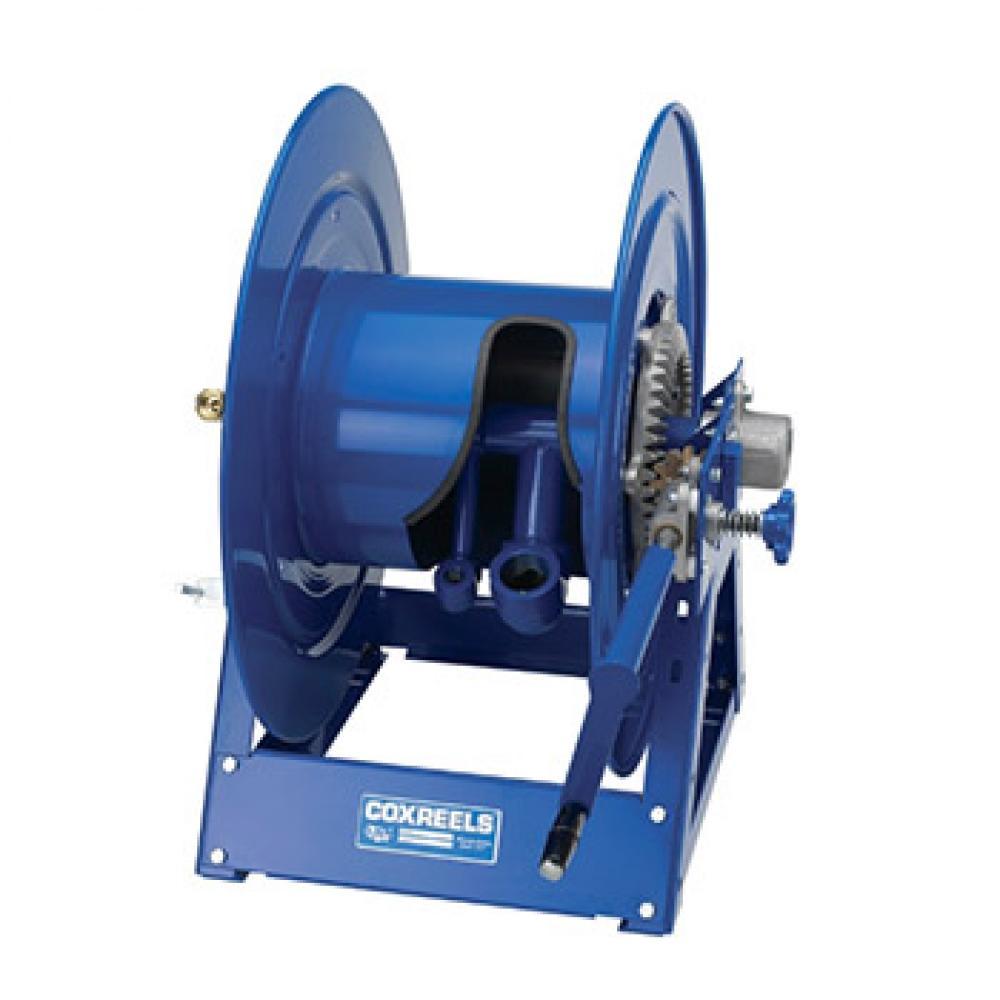

Coxreels V-1175-850 Vacuum Only Direct Crank Rewind: 1 1/2" I.D., 50' hose capacity, less hose
Coxreels V-1175-850 Vacuum Only Direct Crank Hose Reel 1-1/2inx50ft no hose
Product Availability
Specific Products:
Additional Information
ADJUSTABLE TENSION BRAKE - Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
COXREELS® V Series spring driven and hand crank vacuum hose reels are available in both vacuum only and vacuum/pneumatic combinations. Both are designed to extract unwanted fumes, particles and by-products from your work area. The vacuum/pneumatic models
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and direct hand crank for easy mechanical retraction.
STEEL CONSTRUCTION - High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
U SHAPED FRAME DESIGN - Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
VACUUM PORT - Direct connect port for vacuum hose with bullet cuffs.
Info & Guides
Operating Manual
Part Drawings
Spec Sheet
Marketing Collateral 1
Technical Details
Details
ALL:
Coxreels V-1175-850 Vacuum Only Direct Crank Rewind: 1 1/2" I.D., 50' hose capacity, less hose ~ Sturdy all welded “A” frame base with a double supported steel axle ~ Low profile outlet riser & open drum slot design, provide a non-crimping, f
Bearings:
Permanently Lubricated Self Aligning Pillow Block Bearings
Cancer:
Nickel
Cancer Cas #:
7440-02-0
Construction:
Steel
Construction.1:
x
Country of Origin (COO):
US
Dd (inch):
10.5
Design & Structure:
~ Sturdy all welded “A” frame base with a double supported steel axle ~ Low profile outlet riser & open drum slot design, provide a non-crimping, flat smooth hose wrap
Disk (inch):
-
Drive Type (Retraction Method) - Category:
Hand Crank
Dw (inch):
11.63
EAN Code:
0674255830660
Export Control Classification Number:
EAR99
Finish:
Powder Coated
Freight Class:
85
Gloss Black - Add suffix to reel - Minimum order q:
-KXXX
Gloss White -Add suffix to reel - Minimum order qu:
-WXXX
Gray - Add suffix to reel - Minimum order quantint:
-GXXX
Green - Add suffix to reel - Minimum order quantin:
-NXXX
H (inch):
18
H (inch).1:
21
HazMat (YES/NO):
NO
Hose & Rubber:
x
Hose | Cord | Cable Included (Y/N):
N
I.D:
1 1/2" NPT
Industrial:
x
Industrial MRO:
x
Is Item EPA Certified:
NO
Is Item NAFTA Certified:
NO
Keywords - English:
Vacuum Hose Reel - Vacuum Hose - Hand Crank Reel - Vacuum Reel - Hose Reel
L (inch):
17
L (inch).1:
31
Label Text:
WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm.
Language - Packaging Labeling:
English
Length:
50'
M (inch):
14.88
Max Temperature (F):
250 Degrees F
Mount Hole:
0.5 SLOT
Mounting:
Floor, Wall, Vehicle Mounting
N (inch):
16
NMFC #:
169140S2
ORMD (Other Regulated Material Domestic) (YES/NO):
NO
Product Classification / Tariff Number:
8479.89.98.99
Prop 65 Warning (YES/NO):
YES
Red - Add suffix to reel - Minimum order quantinty:
-RXXX
Reel Design:
"A" Shaped Frame
Reel Inlet:
1 1/2" NPT (F)NPT
Reproductive:
Chromium
Reproductive Cas #:
7440-47-3
Restricted for Export by vendor:
NO
Retraction:
~ Bevel gear hand crank (Removable handle for compact storage)
Seal Type:
Nitrile
Series:
V1175 Series
Series Introductory Text:
COXREELS® V Series spring driven and hand crank vacuum hose reels are available in both vacuum only and vacuum/pneumatic combinations. Both are designed to extract unwanted fumes, particles and by-products from your work area. The vacuum/pneumatic models
Ship Weight (lbs):
118
Signature Features:
~ Professional grade heavy duty steel construction ~ Durable proprietary CPC™ powder coat process ~ Rolled edges & ribbed discs provide strength & safety ~ Leading 2-year manufacturer's limited warranty ~ Made in the U.S.A. - Sold & Supported Worldwi
State Restrictions (YES/NO):
NO
Sub-Category:
Specialty
Vacuum:
x
W (inch):
23.625
W (inch).1:
21
W x H x L:
23.625Wx18Hx17L
W x H x L.1:
21Wx21Hx31L
Warranty Length:
24 months Limited Parts / No Labor
Wrinkle Black - Add suffix to reel - Minimum order:
-CXXX
X (inch):
17.13
Y (inch):
20.25
Manufactured By:
Coxreels
