Item Sales Info
Part Number: THN04094 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools THN04094

KYOCERA Precision Tools THN04094
by KYOCERA Precision Tools

Contact For Price
Contact for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

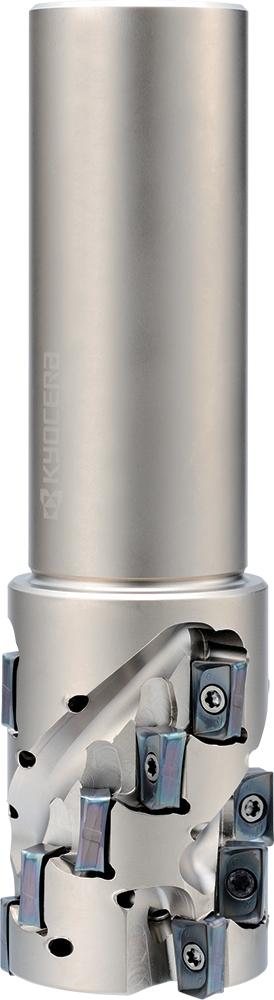

Kyocera MEWH 1500W1251542T (M-FOUR Series), Standard Length, Helical End Mill

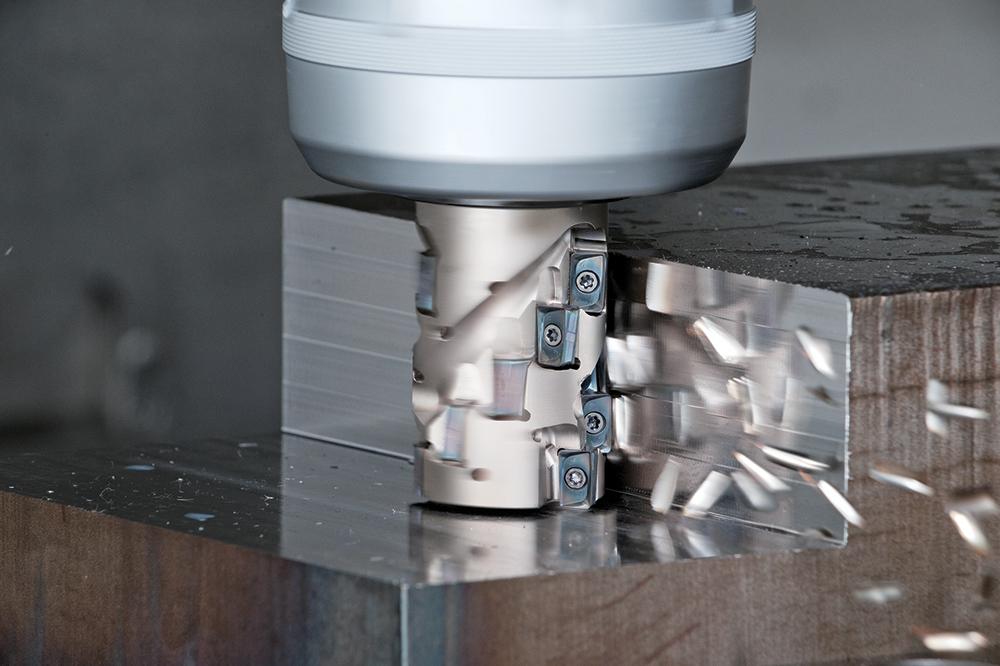

Kyocera MEWH 1500W1251542T (M-FOUR Series), Standard Length, Helical End Mill with a 1.5000" Cutting Diameter for Shouldering, Slotting, Facing Applications
Product Availability
Number of Flutes:
Chipbreaker:
Additional options that would change other selections
Coating Process:
Additional options that would change other selections
Material:
Additional options that would change other selections
Specific Products:
Info & Guides
PDF
Technical Details
Details
Category:
Milling
Subcategory:
Indexable
Subtype:
Indexable End Mills
Insert Holding Method:
Screw
Material:
Steel
Number of Flutes:
2
Shank Type:
Standard Length
Additional Manufacturer Part Number:
8838495
ANSI Part Number:
MEWH1500W1251542T
Application:
Facing|Shouldering|Slotting
California Prop 65 Item:
No
Coolant Through (Yes/No):
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Feature 1:
90 Degree Milling with Double-sided 4-edge Inserts
Feature 2:
Low Cutting Forces with Chatter Resistance for Excellent Surface Finish
Feature 3:
Excellent Surface Finish and Stable Machining due to Innovative Toolholder Design
Feature 4:
Excellent Chip Evacuation
Feature 5:
Compatible with: LOMU1505… style inserts
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
MEWH1500W125-15-4-2T
Material Group / Grade:
GR99
Min Order Qty:
1
Number of Inserts:
8
Origin:
JPN
Pack Height:
2.362
Pack Length:
14.173
Pack Width:
2.362
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8838495
Series Description:
MEW Milling
Series.1:
MEW
Shipping Weight:
2.3780
Tool Style:
MEWH
Unit (inch/mm):
inch
UNSPSC:
27112803
UNSPSC Title:
End Mills
Video 1:
https://www.youtube.com/watch?v=eU8U97cCEao
Weldon Flat:
Yes

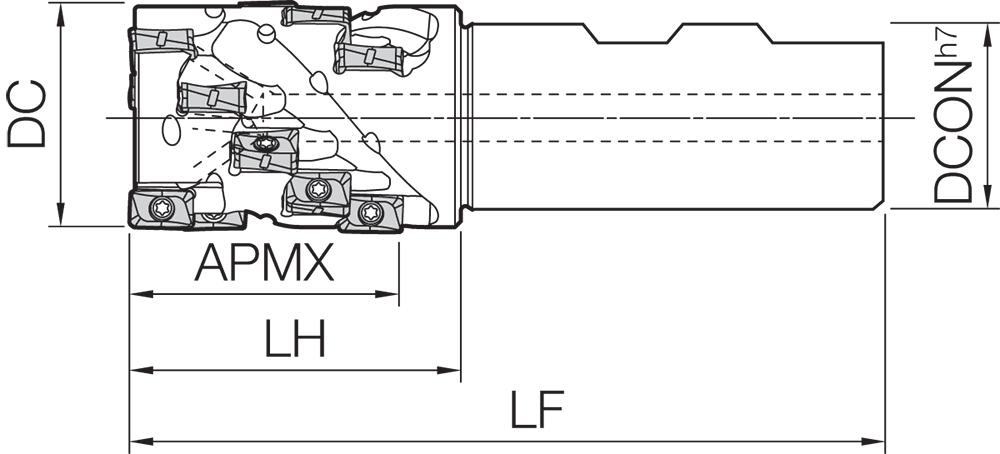

[APMX] Maximum Depth of Cut (Decimal Inch):
2.0866
[APMX] Maximum Depth of Cut (mm):
53.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.5000
[DCN] Cutting Diameter Minimum (mm):
38.10
[DCON] Connection Diameter (Decimal Inch):
1.2500
[DCON] Connection Diameter (mm):
31.75
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.5000
[DCX] Cutting Diameter Maximum (mm):
38.10
[DC] Cutting Diameter (Decimal Inch):
1.5000
[DC] Cutting Diameter (mm):
38.10
[KAPR] Tool Entering Angle (Degree):
90
Manufactured By:
KYOCERA Precision Tools
